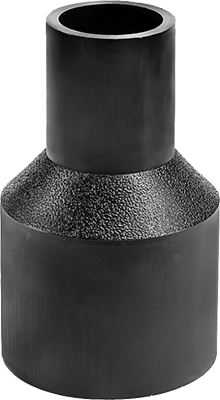

PE100/PE80 SDR17/SDR17.6 热熔变径
| D/d |
E(SDRI7.6/SDR17) |
C(SDR17.6/SDRI7) |
L1 |
L2 |
L |
| 90/50 |
5.2/5.4 |
2.9/3.0 |
80 |
57 |
213 |
| 90/63 |
5.2/5.4 |
3.6/3.8 |
80 |
65 |
202 |
| 110/50 |
6.3/6.6 |
2.9/3.0 |
84 |
57 |
244 |
| 110/63 |
63/6.6 |
3.6/3.8 |
83 |
65 |
233 |
| 110/90 |
6J/6.6 |
5.2/5.4 |
83 |
80 |
204 |
| 160/90 |
9.1/9.5 |
5.2/5.4 |
100 |
80 |
254 |
| 160/110 |
9.1/9.5 |
6.3/6.6 |
100 |
83 |
235 |
| 200/110 |
11.4/11.9 |
6.3/6.6 |
114 |
84 |
275 |
| 200/160 |
11.4/11.9 |
9.1/9.5 |
114 |
100 |
257 |
| 225/160 |
12.8/13.4 |
9.1/9.5 |
122 |
100 |
295 |
| 225/200 |
12.8/13.4 |
11.4/11.9 |
122 |
114 |
295 |
| 250/63 |
14.2/14.8 |
3.6/3.8 |
131 |
64 |
267 |
| 250/160 |
14.2/14.8 |
9.1/9.5 |
131 |
100 |
329 |
| 250/200 |
14.2/14.8 |
11.4/11.9 |
131 |
114 |
297 |
| 315/63 |
17.9/18.7 |
3.6/3.8 |
152 |
64 |
294 |
| 315/90 |
17.9/18.7 |
5.2/5.4 |
152 |
80 |
308 |
| 315/110 |
17.9/18.7 |
6.3/6.6 |
152 |
84 |
318 |
| 315/225 |
17.9/18.7 |
12.8/13.4 |
152 |
122 |
373 |
| 315/250 |
17.9/18.7 |
14.2/14.8 |
152 |
132 |
348 |
| 355/250 |
20.2/21.1 |
14.2/14.8 |
167 |
132 |
398 |
| 400/315 |
22.8/23.7 |
17.9/18.7 |
185 |
152 |
500 |
